Project Examples
Peak AME project examples are generalized to protect customer confidentiality, proprietary designs, and production details while showing the type of engineering support we provide.
Progressive Die

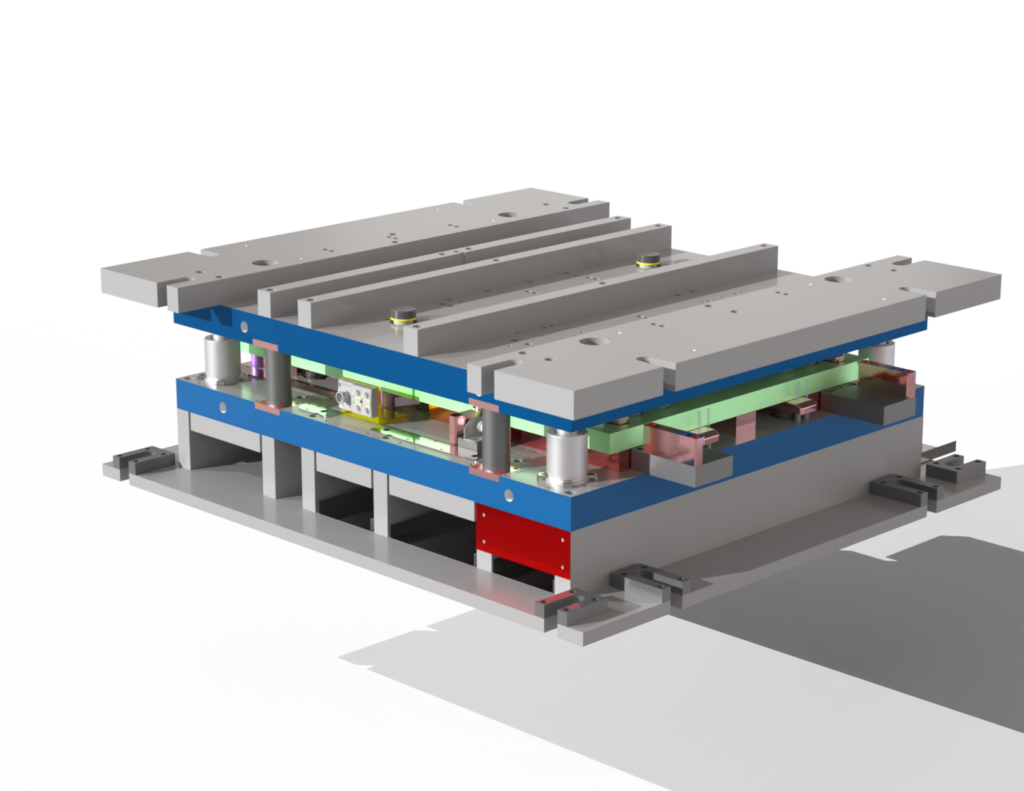

A progressive die concept designed to stamp two different parts from the same tool using a changeover configuration. The tool included ribbing, changeover inserts, and a CAM rebump station to support form adjustability and accuracy. Tooling flexibility, manufacturability, form control, and production-ready die design.
Progressive Die
A progressive die featuring ball lock retainers, quick die change, and die protection designed in on day one.
Compound Blank Die

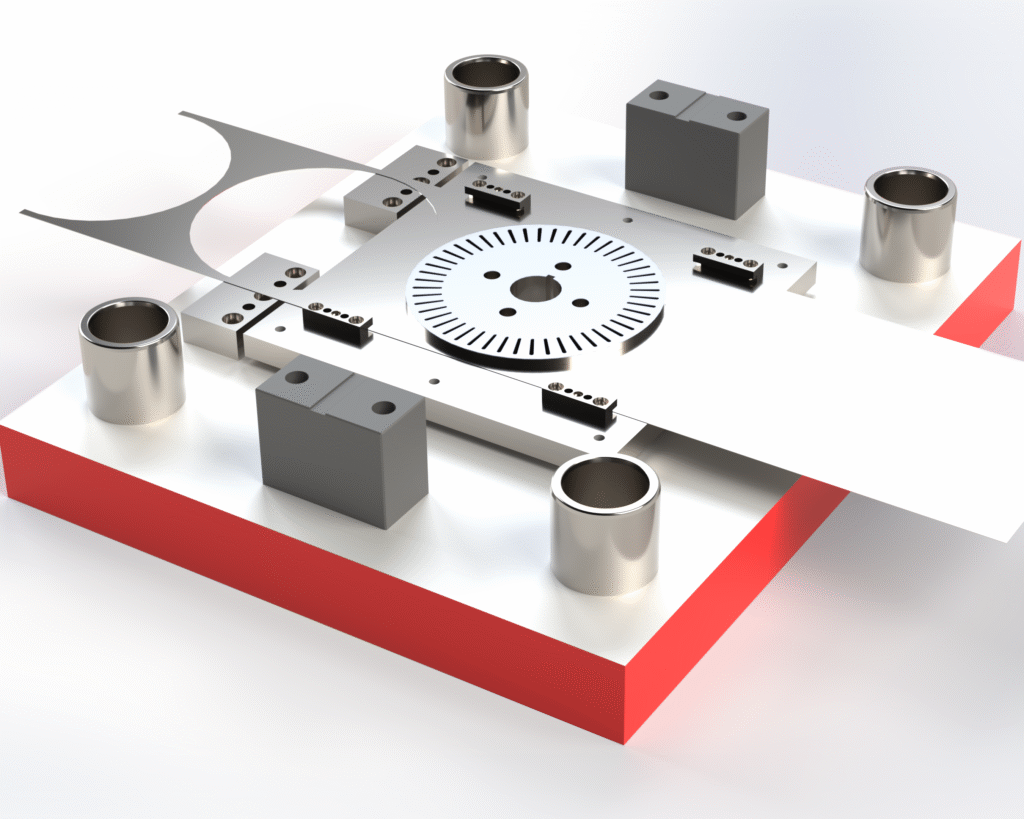

A coil-fed compound rotor blank die. Blanks are retained in the upper section until the press reaches the top of stroke, then ejected onto a retrieval tray for removal from the press area.
Compound Blank Die

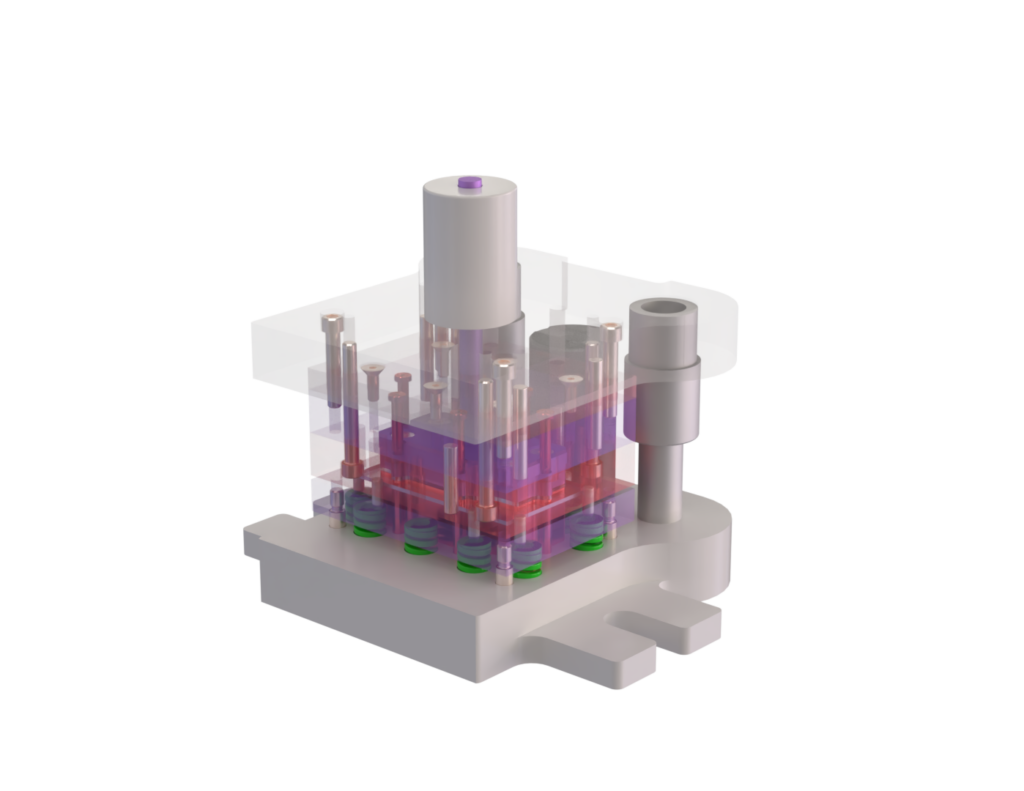

A small compound die designed for tight tolerances and low-volume production, with a simple, practical approach.
